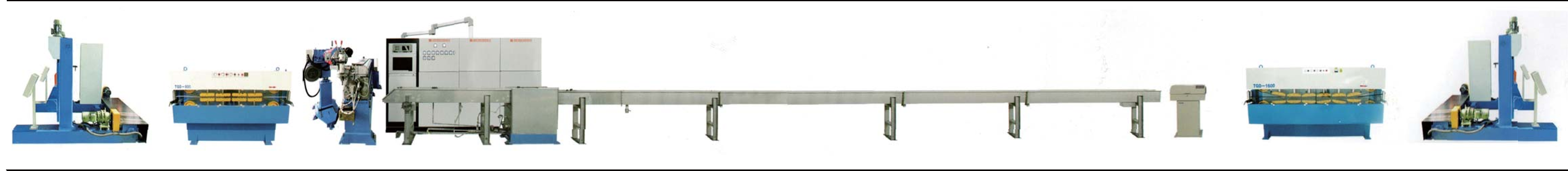

Power Cable Extrusion Production Line

Application:

This line is suitable for power cable for insulating and sheathing materials of PVC PE XLPE LSOH.

Feture:

Barrel and srew adopt excellent alloy with nitrogen treatment, features with wear-proof, anti-corrosion and long servicelife. The line adopts new type extruding screw for ensuring excellent plasticization, thus the extrusion quantity has been improved efficiently.

The line owns the specialized heating and cooling system, the janpan high-precision tem- perature controller is adopted toensure stable and reliable temperature control in the produci- ton process.

Technical Parameter:

Machine model	Pay-off type	Screw diameter	Screw L/D ration	Extrusion output	Mainframe power
MX-80	Gantry type/End shaft type	Φ80mm	25:1	220kg/h	55KW
MX-90	Gantry type / End shaft type	Φ90mm	26:1	300kg/h	75KW
MX-100	Gantry type /End shaft type	Φ100mm	26:1	400kg/h	110KW
MX-120	Gantry type / End shaft type	Φ120mm	25:1	550kg/h	132KW
MX-150	Gantry type	Φ150mm	25:1	900kg/h	220KW
MX-200	Gantry type	Φ200mm	25:1	1200kg/h	280KW

Machine model	Traction type	Take-up type	Electrical control
Single layer U-shaped sink	Double wheel/tracked type	Gantry type / End shaft type	Traditional type /PLC type
Single layer U-shaped sink	Double wheel/tracked type	Gantry type / End shaft type	Traditional type /PLC type
Single layer U-shaped sink	Tracked type	Gantry type / End shaft type	Traditional type /PLC type
Single layer U-shaped sink	Tracked type	Gantry type / End shaft type	Traditional type /PLC type
Single layer U-shaped sink	Tracked type	Gantry type	Traditional type /PLC type
Single layer U-shaped sink	Tracked type	Gantry type	Traditional type /PLC type
