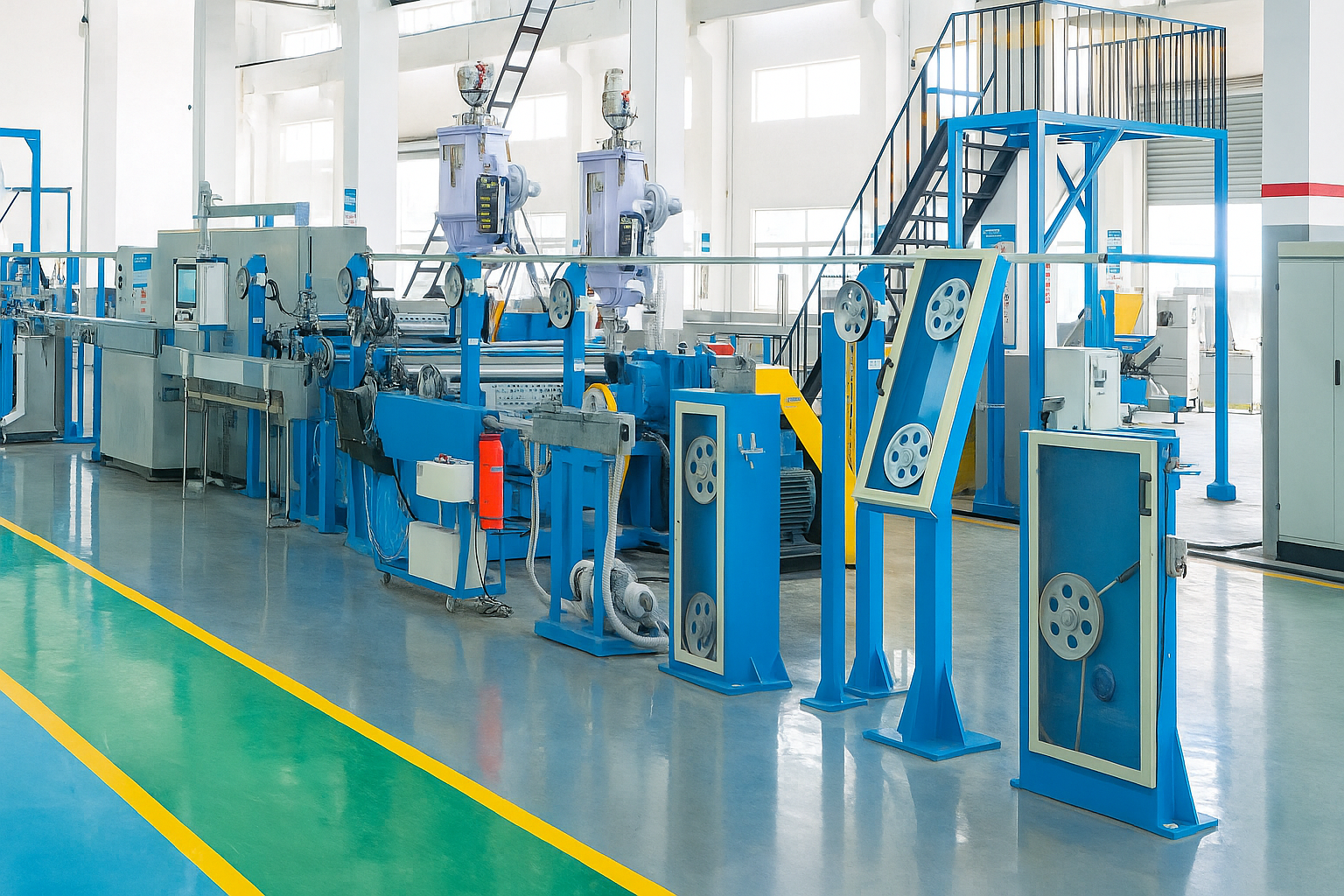

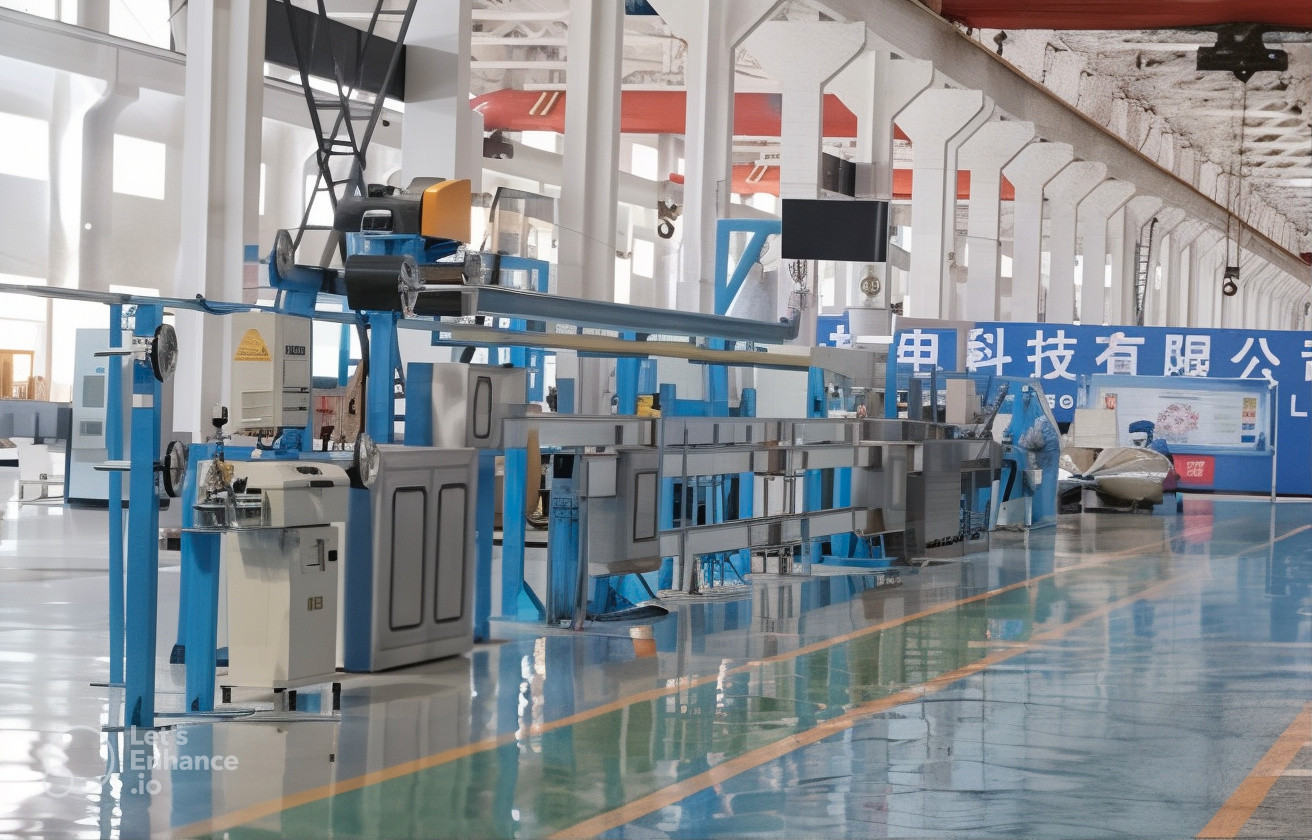

Dây chuyền ép đùn cách điện quang điện

Application:

It is suitable for the production of automotive speciallexible cord, low voltage ordinary wire Av, low voltage thin-skinnedwire AVS, low voltage ultra thin-skinned wire AvSS, electronical irradiated PVc low voltage wire Avs, electronical irradiated PE low voltage wire AEX etc.


Equipment composition:

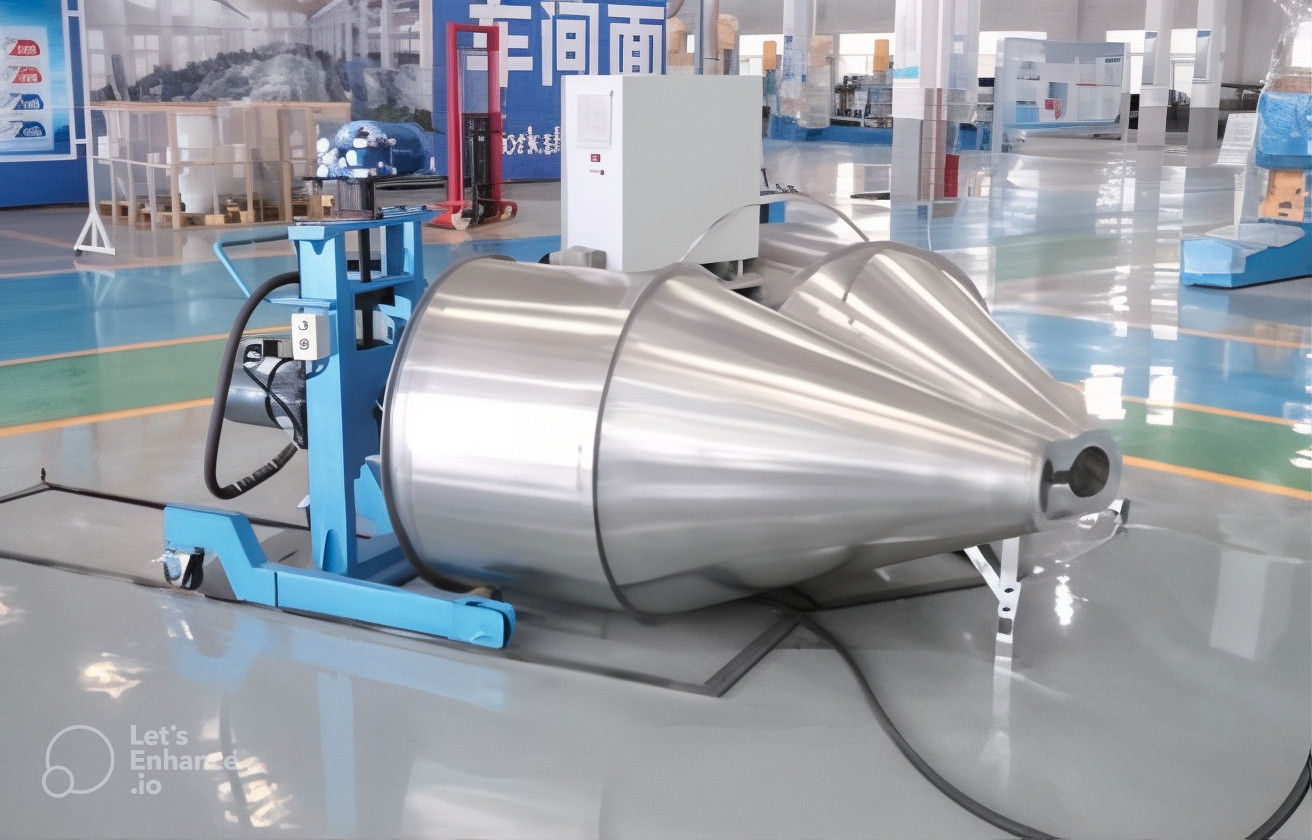

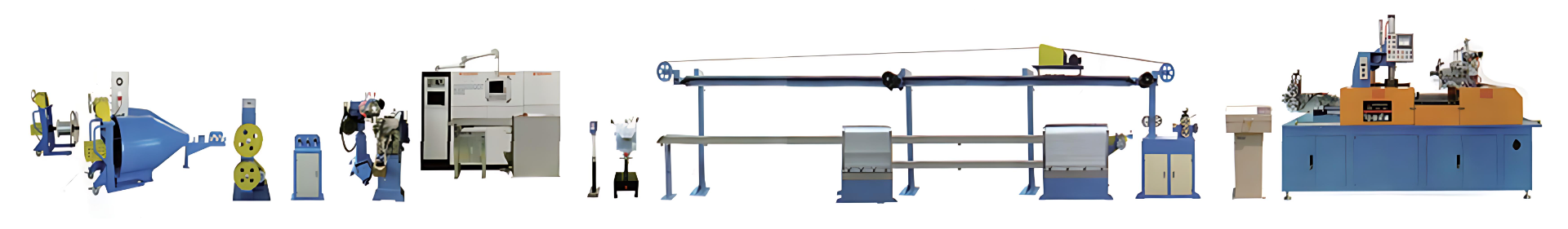

It is composed of pay-off stand, straight flat table, main machine, main control cabinet, wate trouch Cahle storage rack traction device take-un machine and other accessories Ontiona flyer type pay-off, swing arm type pay-off PLC computer all-process control, laser diameter gauge, copper wire preheater.



Technical Parameter:

Machine model	Pay-off type	Screw diameter	Screw L/D ration	Extrusion output	Mainframe power	Adaptive diameter	Cooling device
MX-50+35	Active/ Passive pay-off	Φ50mm	25:1	70kg/h	11KW	Φ0.75-4mm	Single layer/ Double U type
MX-60+35		Φ60mm	26:1	110kg/h	18.5KW	Φ0.8-8mm
MX-70+35		Φ70mm	26:1	160kg/h	37KW	Φ1.5-12mm
MX-80+40		Φ80mm	26:1	220kg/h	55KW	Φ2-18mm

Traction power	Storage line type	Line speed	Take-up type	Circle formation	Electrical control
4KW	Inclined/Horizontal	MAX500m/min	Double-axis axle-mounted/bundle	Automatic looping	Frequency control+PLC control
4KW	Horizontal	MAX450m/min	Double-axis axle-mounted/bundle	Automatic looping
4KW	Horizontal	MAX400m/min	Double-axis axle-mounted/bundle	Automatic looping
5KW	Horizontal	MAX350m/min	Shaftless double bobbin/ Bonding	Automatic looping
