Dây chuyền sản xuất máy đùn cáp điện
Application:
It is suitable for single, double and triple layer co-extrusion of PVC, LDPE, NYLON, LSOH and other insulating materials.
Equipment composition:

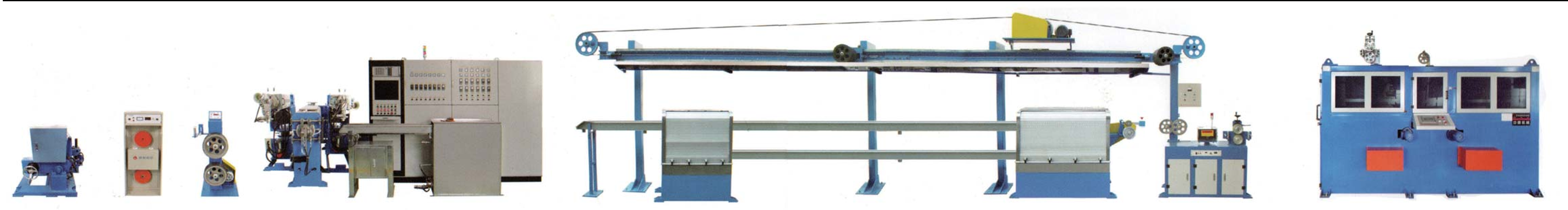

It is composed of pay-off machine, staight- ener main machine, water trough, Cable storage rack, traction device and take-up machine.
Option:
Active pay-off machine, powder machine, diameter gauge, low smoke halogen-free screw, Single and double bobbin take-up, automatic coiling packaging machine.
Technical Parameter:
| Machine model | Pay-off type | Screw diameter | Screw L/D ration | Extrusion output | Mainframe power | Adaptive diameter |
| MX-60+35 | Active/passive pay-off | Φ60mm | 26:1 | 110kg/h | 18.5KW | Φ1.2-10mm |
| MX-70+40+40 | Active/passive pay-off | Φ70mm | 26:1 | 160kg/h | 37KW | Φ1.5-12mm |
| MX-80+50+50 | Active/passive pay-off | Φ80mm | 26:1 | 220kg/h | 55KW | Φ2.0-20mm |
| MX-90+50 | Active/passive pay-off | Φ90mm | 26:1 | 300kg/h | 75KW | Φ5.0-42mm |
| MX-100+60+60 | Active/passive pay-off | Φ100mm | 26:1 | 400kg/h | 110KW | Φ5.0-42mm |
| Cooling device | Traction power | Storage line type | Take-up type | Electrical control |
| Single layer/double U type | 4KW | Horizontal | Double-axis axle-mounted / Bundle | Frequency control+PLC control |
| Single layer/double U type | 4KW | Horizontal | Double-axis axle-mounted / Bundle | Frequency control+PLC control |
| Single layer/double U type | 5.5KW | Horizontal | Double-axis axle-mounted / Bundle | Frequency control+PLC control |
| Single layer/double U type | 7.5KW | Horizontal | Double bobbin-bonding | Frequency control+PLC control |
| Single layer/double U type | 7.5KW | Horizontal | Double bobbin-bonding | Frequency control+PLC control |
